Smilart Phoenix Journal User Guide

Overview

Smilart Phoenix Journal subscribes for events produced by Phoenix System and stores them its' internal database for a user to view them later.
Currently Journal records events from Person Service, Video Content Analytics Service and Verification Service only. Smilart Phoenix Journal requires Phoenix Erlang API version 2.4 to work correctly.

Installation

Smilart Phoenix Journal product installation is performed by Smilart Application Manager (SAM).

For more information about sam see Smilart Application Manager documentation

To install the Smilart Phoenix Journal product installproduct command is used which will be available in system after installation of docker image smilartos-install.
This image also contains information about all available products, their versions and location.

Image smilartos-install

smilartos-install — image, which contains information about all available Smilart products, their versions and locations.

To install it, you need to run several commands:

Get all versions of smilartos-install and select the one you prefer (usually the latest)

$ sam se smilartos-install

      List image versions:

smilartos-install:1772.4.0_126

Install the preferred version

$ sam in smilartos-install:1772.4.0_126

For more information about sam see Smilart Application Manager documentation

After installation ends image smilartos-install should appear in the list of images

$ sam list | grep smilartos
smilartos-install  |  1772.4.0_126  |  int

Then the installproduct command becomes available.

Product Phoenix Journal

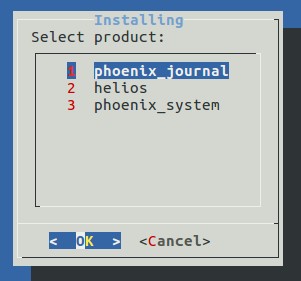

After calling installproduct command the product selection window appears where phoenix_journal must be selected to install Smilart Phoenix Journal.

Product selection window

After that preferred version of Smilart Phoenix Journal can be selected.

Product version select window

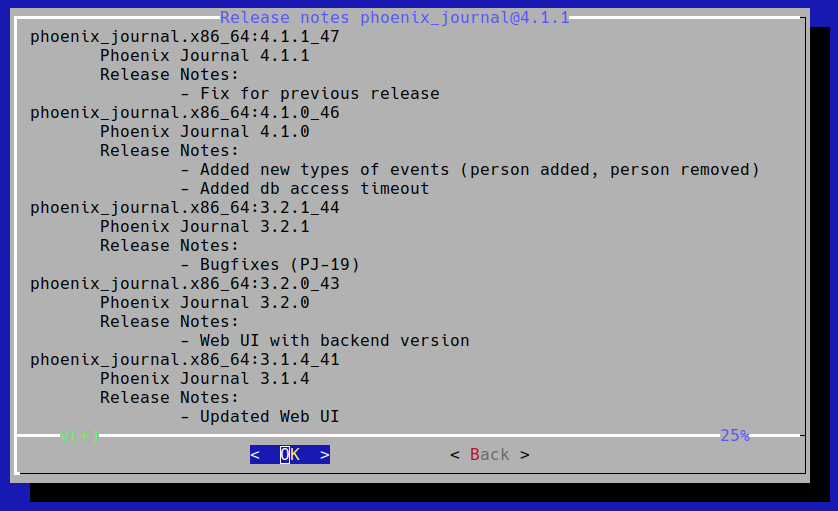

Screen with information about selected version appears.

Product information window

After confirmation system will collect information about the installation, download necessary files and offer to install collected images into the system.

Install confirmation

After confirmation system will complete the installation of Smilart Phoenix Journal.

Successful installation can be verified by using

$ sam list

      List apps:

Name                                 | Version       | Repository
-----------------------------------------------------------------
phoenix_journal.x86_64               | 4.5.1_55      | int
...

If any errors occur during the installation contact technical support.

User interface

Smilart Phoenix Journal provides a basic user interface which can be found at http://<hostname>:8084/, where <hostname> is a hostname or ip-address of the server where journal is installed. This interface can be used to find and display events stored in journals' database. It also provides capabilities to filter displayed events by date and time, type of event, camera or person id. All events are sorted from newest to oldest.

User Interface

Configuration

Configuration file for Smilart Phoenix Journal is located at /etc/phoenix_journal/current/sys.config.

Text after % is a comment.

  [
    {sml_phoenix_journal, [
      {web_panel, [
        %% {authentication, none | {keycloak, #{...}} }
        {authentication,
          none
          % {keycloak, #{
          %   host=> "${keycloak_host}",
          %   role=> "phoenix_journal_auditor",
          %   port=> 8080,
          %   client_id=> "phoenix_journal_web_panel",
          %   realm=> "smilart"
          % }}
        },
        {port, "${WEB_PANEL_PORT}"}
      ]},
      {phoenix_connection, [
        {node, 'sml_phoenix@phoenix'}, %% Erlang node name
        {cookie, 'sml_phoenix'} %% Cookie
      ]},
      {max_db_size_gb, 20},
      {max_retained_correlation_photos, 4},
      {db_partition_backup_timeout_sec, 180},
      {user_request_timeout_ms, 15000},
      {path, "/data/phoenix_journal/journal_db/"},
      {db_access_timeout_sec, 15},
      {save_frames, [
        {verification, [
          {enabled, false},
          {frames_throttle_time_ms, 100}
        ]}
      ]}
    ]},
    {cache, [
      {event_cache, [{n, 10}, {ttl, 60}]},
      {detect_cache, [{n, 10}, {ttl, 300}]}, %ttl in sec
      {read_cache, [{n, 10}, {ttl, 300}]},
      {person_cache, [{n, 10}, {ttl, 1200}]}
    ]},
    {lager, [
      {async_threshold, 100},
      {async_threshold_window, 25},
      {crash_log_size, 104857600},
      {crash_log_date, ""},
      {crash_log_count, 4},
      {handlers, [
        %{lager_file_backend, [{file, "log/debug.log"}, {level, debug}, {size, 104857600}, {date, ""}, {count, 4}]},
        {lager_file_backend, [{file, "log/info.log"}, {level, info}, {size, 104857600}, {date, ""}, {count, 4}]},
        {lager_file_backend, [{file, "log/warning.log"}, {level, warning}, {size, 104857600}, {date, ""}, {count, 4}]},
        {lager_file_backend, [{file, "log/error.log"}, {level, error}, {size, 104857600}, {date, ""}, {count, 4}]}
      ]}
    ]},
    {sasl, [
      {sasl_error_logger, {file, "log/sasl_errors.log"}},
      {errlog_type, error}
    ]}
  ].

Phoenix connection settings

The section phoenix_connection contains Phoenix connection settings.

Name

Type

Description

node

string

Phoenix node name in {NAME}@{HOST} format.

string

Phoenix erlang cookie.

Web panel settings

The section web_panel contains Web Panel settings.

Name

Type

Description

authentication

none or {keycloak, #{…}}

Describes what authentication method will be used by Web Panel to access Phoenix Journal.

port

string

On which port Web Panel will be available.

Web panel authentication settings

See Secure User Interface with Keycloak

Phoenix Journal Db settings

This section contains settings for Phoenix Journal Database.

Name

Type

Description

max_db_size_gb

integer

Maximum size of journal database in gigabytes.
Minimum size allowed is 3 gb.

max_retained_correlation_photos

integer

Maximum number of top correlated photos per event to store in Journal database.
You will reduce storage size by decreasing this parameter.

db_partition_backup_timeout_sec

integer

Timeout in seconds to backup one partition of Journal database.
You should increase this timeout if the copy speed on the hard drive is slow.

user_request_timeout_ms

integer

Timeout in milliseconds to obtain data for UI from Journal database.
You should increase this timeout if querying the database takes a long time.

db_access_timeout_sec

integer

Timeout in seconds to access Journal database.
If your hdd writing speed is less than 1 GB/s then double the timeout.

path

string

Where in filesystem Journal database files will be stored.

Any settings not described above should be changed only by developers.

Phoenix Events settings

This section contains settings for some external Phoenix Events.

Name

Type

Description

save_frames

object

Settings to save frames from cameras to Journal database.

save_frames.verification

object

Settings to save camera frames during verification process to Journal database.

save_frames.verification.enabled

boolean

Setting whether to save frames camera frames during verification process to Journal database.
Default is false.

save_frames.verification.frames_throttle_time_ms

integer

Minimum time interval in milliseconds between saving camera frame events to Journal database.
Default is 100.

save_frames.verification.enabled can be true only for the period of debugging the quality of the system.

Low value of save_frames.verification.frames_throttle_time_ms can affects system performance and accelerates events rotation in Journal database.

User interface settings

By default there is no authorization for User interface, but it is possible to add some.

By using Nginx basic authorization.
By using Keycloak (https://www.keycloak.org/).

Secure User interface with Nginx basic access authentication

Install and setup Nginx (https://smilart.atlassian.net/wiki/spaces/PS/pages/173670407/Install+nginx+for+basic+access+authentication).

For instance we want to have access to User Interface by http://nginx-address/journal/. And assume that Nginx can get User Interface by http://192.168.1.39:8084

To achieve that you must modify /etc/nginx/nginx.conf by adding location rules to your http server which is on port 80.

#...
http {
#...
server {
    listen       80;
#...

# Next rule is to get User Interface resources files
location /journal/ {
    proxy_pass http://192.168.1.39:8084/; # note the trailing slash!
}

# Next is used for internal Journal API
location /journal/api/csi {
    proxy_pass http://192.168.1.39:8084/api/csi;
    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection "upgrade";
    proxy_read_timeout 2073600; #maximum supported is 24 days
}

#...
}
}
#...

To Apply changes in the config file Nginx must be restarted by systemctl restart nginx.

After that follow next steps to close Journal User Interface port:

1) Create file /var/lib/iptables/rules-save and edit like in example below.

*filter
-A INPUT -p tcp -m tcp --dport 8084 -j DROP
COMMIT

2) Enable iptables-restore systemctl enable iptables-restore.

3) Reboot.

Secure User Interface with Keycloak

Install and setup Keycloak (https://smilart.atlassian.net/wiki/spaces/PS/pages/164102281/Install+keycloak).

Change Journal config parameter web_panel (/etc/phoenix_journal/current/sys.config.orig)

% - makes comment until end of line
% ...
    {web_panel, [
      %% {authentication, none | {keycloak, [ ...]} }
      {authentication,
        {keycloak, [
          {host, "${keycloak_host}"},
          {port, 8080},
          {role, "phoenix_journal_auditor"},
          {client_id, "phoenix_journal_web_panel"},
          {realm, "smilart"}
        ]}
      },
      {port, "${WEB_PANEL_PORT}"}
    ]},
% ...

Properties
Name	Type	Description
web_panel	object	Settings for User Interface.
web_panel.port	integer	User Interface port . By default will be applied from env. `${WEB_PANEL_PORT}`, which is 8084 by default.
web_panel.authentication	object	Can be `none` or `keycloak`.
web_panel.authentication.keycloak.host	string	Host name of Keycloak. By default will be applied from env. `${keycloak_host}`, which is hostname of station with the Journal.
web_panel.authentication.keycloak.port	integer	Port of Keycloak. By default `8080`.
web_panel.authentication.keycloak.role	string	Required role for Keycloak user to access Admin Panel. By default `phoenix_journal_auditor`.
web_panel.authentication.keycloak.client_id	string	Name of Keycloak 'Client' for Admin Panel. By default `phoenix_journal_web_panel`.
web_panel.authentication.keycloak.realm	string	Keycloak realm to use. By default `smilart`.

If you change User Interface port you also need to change this port forwarding in systemd unit file (/etc/systemd/system/phoenix_journal.service).

Host name and port of Keycloak must be reachable from phoenix_journal docker container and from client side of User Interface.

To Apply changes in the config Journal must be restarted by systemctl restart phoenix_journal.

Backup and Restore

Backuping journal database can be done by invoking sml_phoenix_journal_backup from /opt/bin

  /opt/bin/sml_phoenix_journal_backup --path <path>

Here <path> is the path to where database files will be dumped. This path must be attached as a volume to Phoenix Journal docker container.

Restoring journal database can be done by invoking sml_phoenix_journal_restore from /opt/bin

  /opt/bin/sml_phoenix_journal_restore --path <path>

Here <path> is the path from where database files will be copied. This path must be attached as a volume to Phoenix Journal docker container.

The path /data/share is attached to Phoenix Journal container by default and can be used for backup and restore purposes.

Tips

To drop database stop journal, delete database files in /data/phoenix_journal and start journal back. It will create clean database on startup.

To change database size stop journal, change database size in sys.config and drop database before starting journal.
